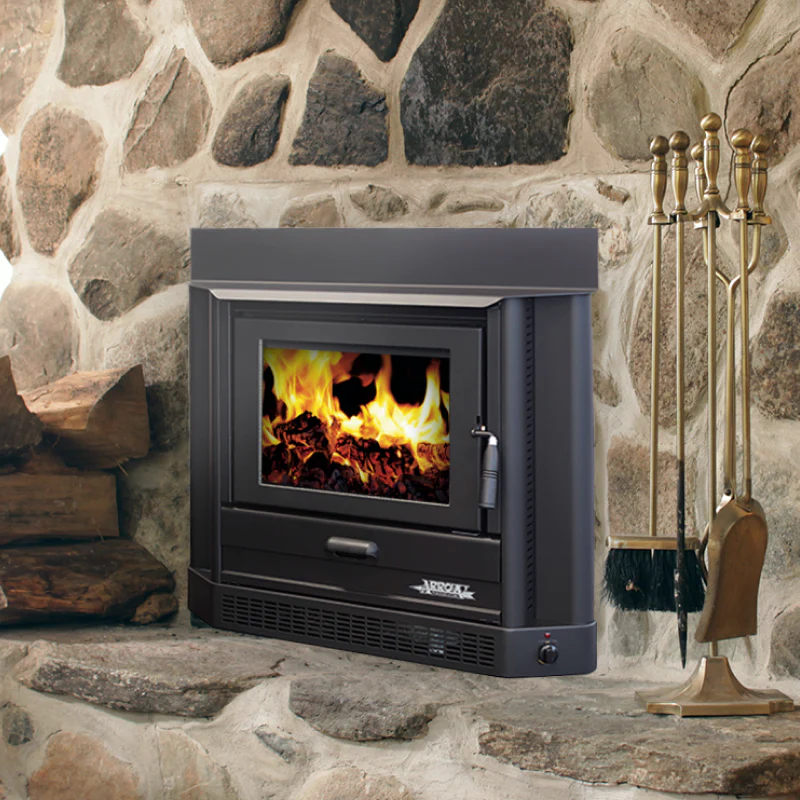

Arrow 1600 Inbuilt Woodheater

Arrow 1600 Inbuilt Woodheater

Arrow Woodheaters have set the benchmark for solid, reliable, effective wood heaters that are timeless. With low emissions and high efficiency, the Arrow 1600 Inbuilt Woodheater is the perfect medium-sized inbuilt heater featuring the great components Arrow Woodheaters are known for.

Arrow Woodheaters are made using fully welded steel plate fireboxes fitted with performance enhancing cast iron liners for greater heat retention in the firebox and transference of heated air into the home. These heaters also feature a 3-way air system that allows for a complete burn of the fuel for optimum heat output and improves combustion even when the fuel is less than ideal.

The 1600 Inbuilt Woodheater is easy to clean, with a large ash drawer residing directly under the grate which you simply empty around once a week or less. You can even empty it while the fire is going to give you 24-hour warmth all winter. There is no need to extinguish the fire and then sweep and shovel out the ash bed as in other heaters.

Features

• Performance Enhancing Cast Iron Firebox Liners
• High Quality and Long Lasting Cast Iron Grates
• Easy to use Ash Pan
• Slide Control allows you to set the air flow at the base of the fire
• Powerful 3 Speed Fan for maximum heat distribution
• Heating Capacity of up to 25 Square Metres

Specifications:

Heating Capacity	Up to 25 Square Metres
Colour	Satin Black
Average Heating Efficiency	65%
Average Peak Power	12.7 kW
Weight	200kg

Dimensions
900mm (W) x 476mm (D) x 814mm (H)

Firebox
556mm (W) x 335mm (D) x 698mm (H)

Clearance to Combustibles
Brick Fireplace Only
Top: 500mm
Side: 15mm

Hearth Distance from Firebox
Side:107mm
Front: 450mm

Manuals

Arrow Installation and Operating Manual

Arrow Brochure and Individual Part Specs

Fire tools pictured are sold separately**
