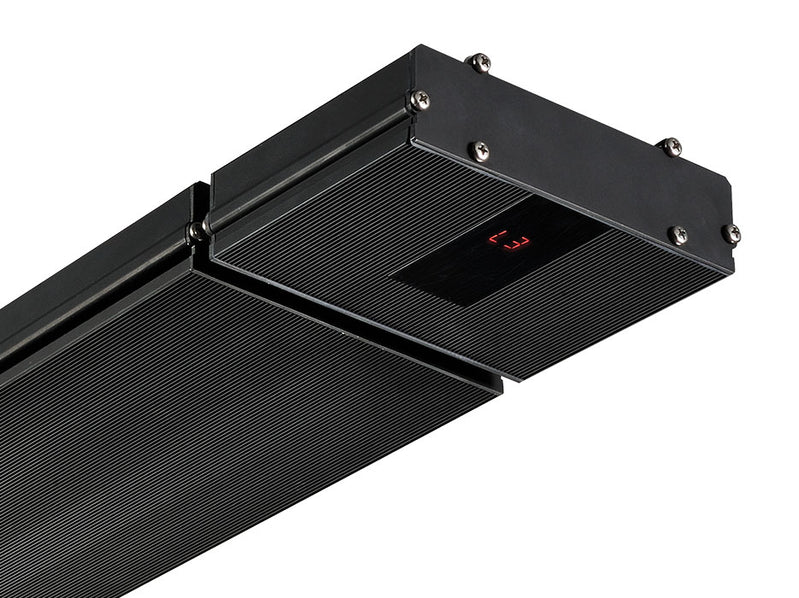

Heatstrip TG2200RB Electric Radiant Heater - Black

HEATSTRIP^® TF2200RB Electric heater is for protected undercover outdoor and indoor areas such as alfresco areas, verandas, patios, garages, bathrooms etc.

FEATURES

• 2200 Watts
• Gentle heat output, slimline design.

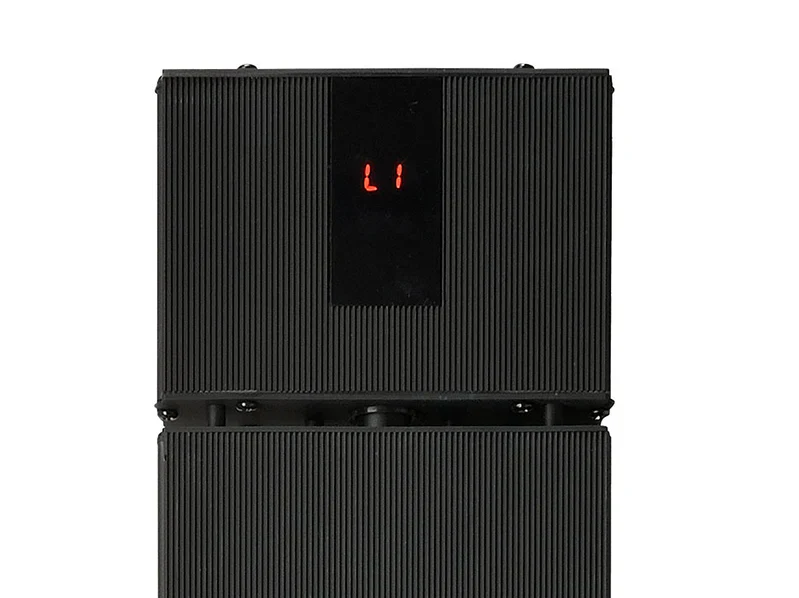

• LED control panel with easy On/Off functionality, 3 heat levels and adjustable 0-24 hour timer.
• Anodised alloy construction Profiled off-white heater. No glow.

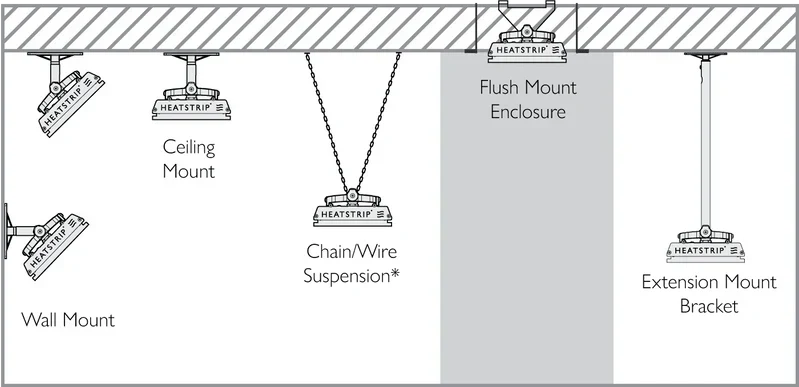

• Direct overhead ceiling mounting is the preferred mounting method.
• 12 month warranty.

Specifications

Power (Watts)	2200 Watts
Current (Amps)	9.2
Lead Length	1500mm
Plug	Yes
Warranty	12 Month Warranty



Positioning

General recommendations for HEATSTRIP^® TF2200RB:

• Ideal mounting height: 2.3m to 2.5m. Maximum is 2.7m in a fully protected/enclosed outdoor environment.
• Ideal mounting location: ceiling mounted, directly above area to be heated (eg. above a table)
• For a protected outdoor area, a minimum of 500W/m² is required. For indoor spot heating, a minimum heating capacity of 400W/m² is recommended.

The table below outlines the maximum coverage of the HEATSTRIP^® TF2200RB based on 3 different scenarios with direct overhead mounting. For example, for an outdoor area that is protected from prevailing winds by walls, cafe blinds etc, Model TF2200RB will cover 3.6m². For angled wall mounting applications, the coverage is reduced by up to 40%.

Dimensions:

1144 x 162 x 50

Manual

Heatstrip Electric Radiant Heater TF2200RB Manual.pdf
