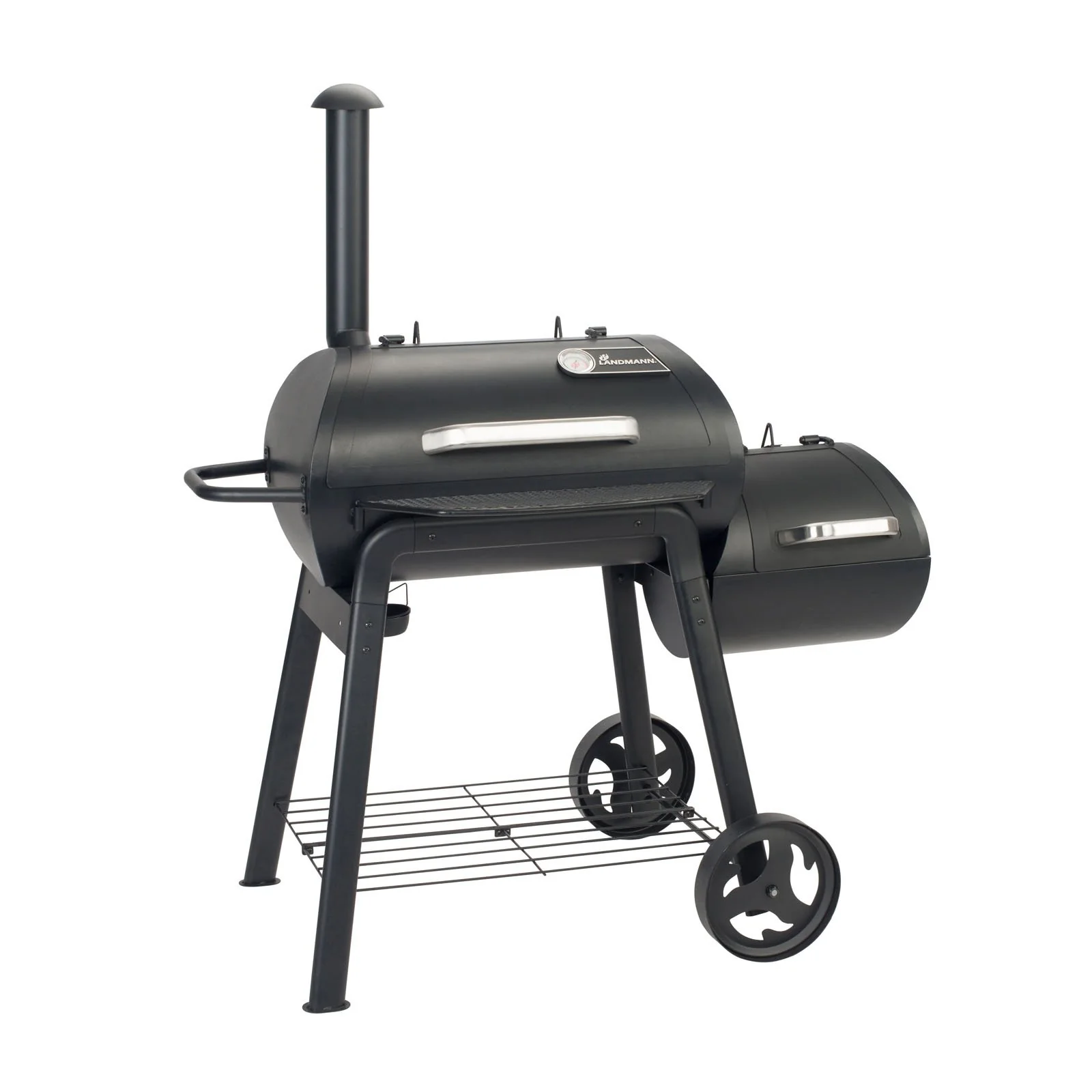

Landmann Vinson 200 Offset Smoker

Landmann Vinson 200

Enjoy cold smoking your meat? Then this Vinson 200 Offset Smoker just might be what you’re looking for. This 16-inch smoker offers a dynamic 4-in-1 function: smoking, cold smoking, direct and indirect grilling. Features include large steel wheels for convenient displacement, an integrated lid thermometer for regulated cooking, suitable storage options, and an easy-to-clean ash access panel.

Product Features

MODEL NO: 480511

Heat Distribution System	Steel baffles to assist smoke & heat distribution
Fire Bowl	Heavy-duty steel 1.0mm fire bowl
Cooking Area	1 pc chrome plating warming rack
Cooking Grid	Enamel charcoal grids
Thermometer Placement	Thermometer conveniently located in hood
Temp. Regulation	Chimney venting on top for temperature adjustment
Mobility	2 steel wheels and back handle for easy mobility
Storage	Removable front and bottom shelf for storage
Door System	2.5mm heavy gauge doors with gasket seal to keep heat and smoke in
Cooking Chamber	1.0mm engineered flavour cooking chamber designed to optimize heat and smoke circulation
Smoker Functionallity	Smoking, cold smoking, direct and indirect grilling
Additional Features	Easy-to-clean ash access panel Heavy duty 1.5mm lid

Specifications

Brand	Landmann
Type	BBQ Smoker
Orientation	Horizontal
Product Weight	41kg
Product Dimensions	L:128.4cm x D:82cm x H:148.7cm
Carton Size	80cm x 45cm x 47cm
Carton	Brown box with colour label
Cooking Grid Size	Main: 24.2cm x 39.8cm x 3 pieces Offset: 17.7cm x 35.8cm x 2 pieces 756sq of total cooking area
Firebox Size	Main 40.8cm x 75.2cm Offset: 37cm x 42.2cm
Main Smoking Chamber Dimensions	30 inch x 16 inch
Cooking Grid Materials	Enamelled 5 steel wire
Enamel Grates Dimensions	5mm porcelain enamel cooking grates
Chimney Dimensions	3-inch diameter chimney with adjustable rain cap which aides in maximising draft
Firebox Material	Powder-coated steel
Smoker Colour	Black

Manuals

Landmann Vinson 200 Offset Smoker user manual.pdf
