Nectre Mega Wood Fire

Nectre Mega Wood Fire

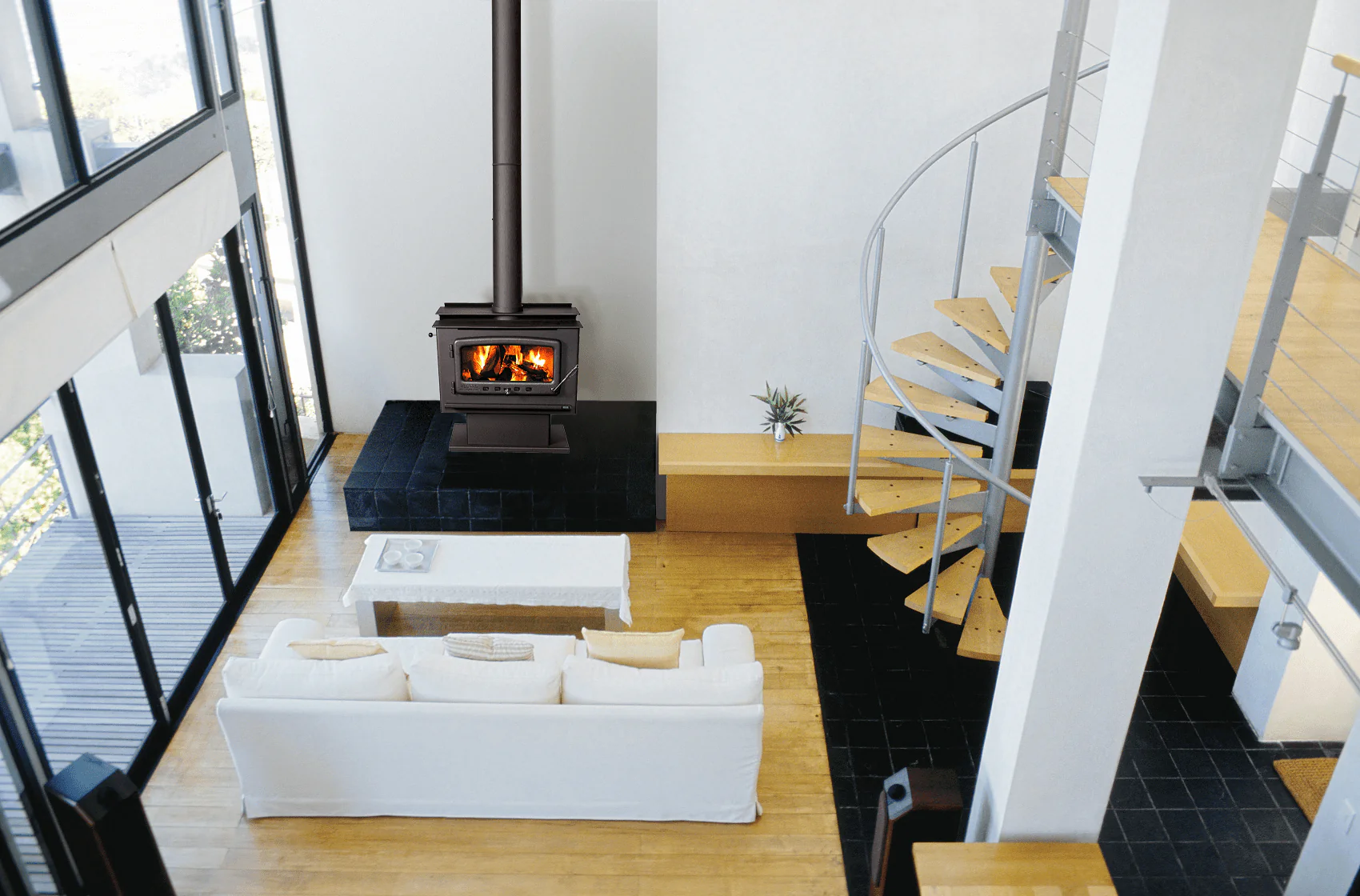

The Nectre Mega will be a welcome addition into your home. It will give large living spaces plenty of warmth and ambience. It has been designed for maximum impact, offering your home an impressive and highly functional feature where you can gather with friends and family on those chilly winter days.

• Enormous heating capacity of up to 280m2

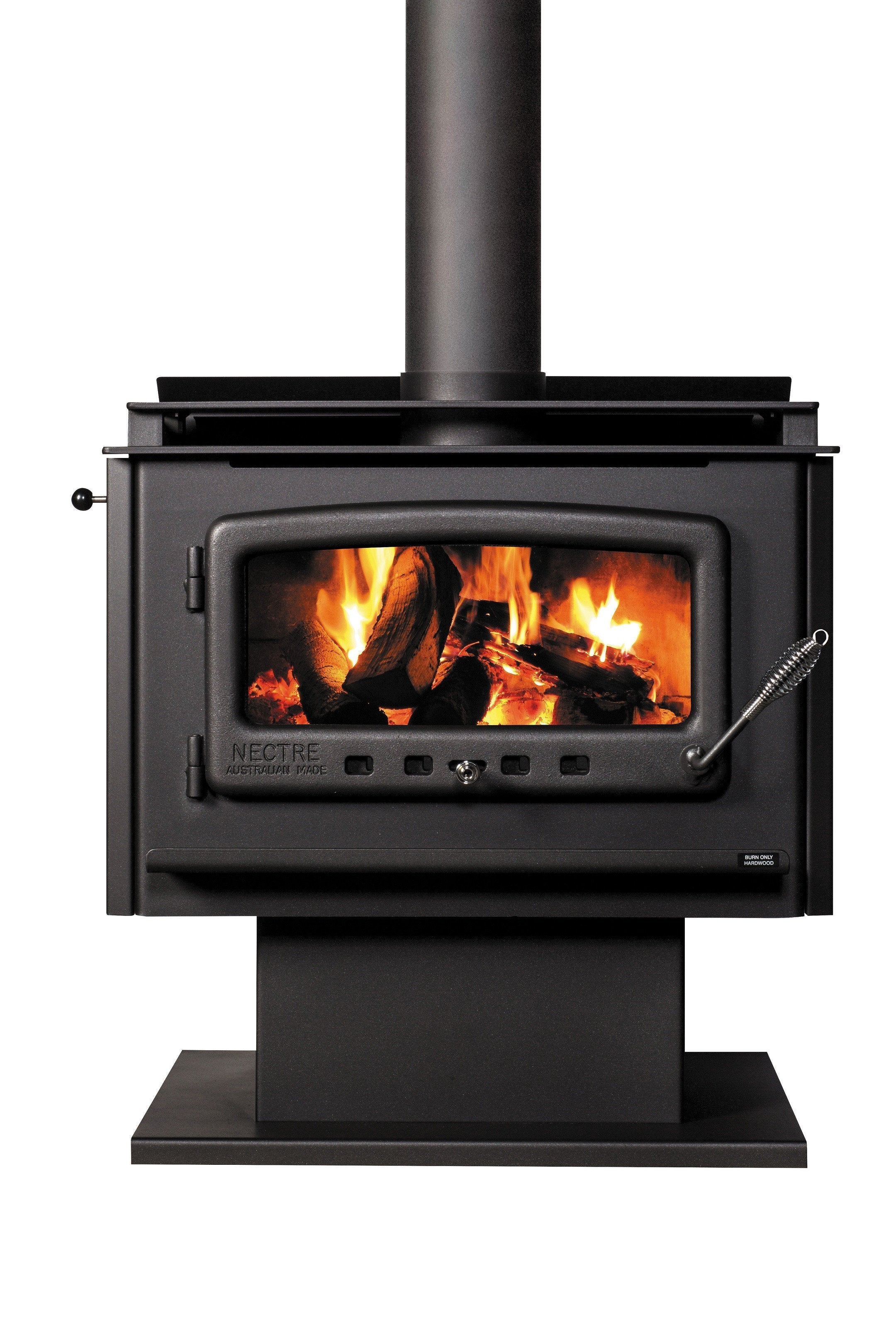

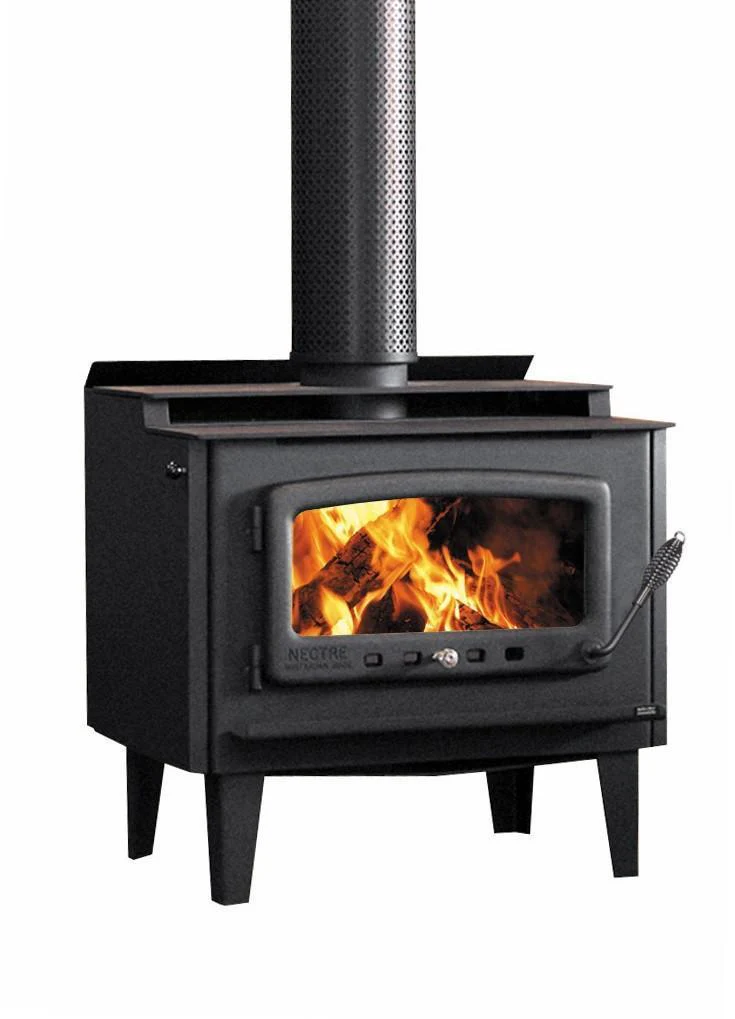

• Choice of freestanding legs or pedestal
• Maximum log width of 500mm
• Optional 3 speed fan for Pedestal version

Specifications

Heat Output	Up to 18kW with fan / Up to 16kW without fan
Approximate Heating Area	Up to 280m2
Efficiency	62%
Emissions	Up to 1.5kg with fan / up to 1.4kg without fan
Maximum log width	500mm
Weight	Legs: 170kg / Pedestal: 180kg

Dimensions

Pedestal Model:760mm (W) x 838mm (H) x 663mm (D)

Legs Model:760mm (W) x 834mm (H) x 663mm (D)

Heater Clearances

Rear to Wall - 200mm (square to walls)

Side to Wall - 875mm (square to walls)

Rear Corner to Wall - 450mm (corner installation)

Compliance

The Nectre Mk1 has been designed and manufactured to exceed the strict AS/NZS 4013 standards for emissions of 1.5g / kg of fuel burnt and efficiency of 60%.

Manuals

Nectre MEGA Operating Instructions.pdf

Necture MEGA Installation Instructions.pdf

Flue Options

Standard Flue Kit	Includes
SWH-6101	Anti-down draught hat SS 2 x 10‚"galvanised flue lengths 2 x 8‚"galvanised flue lengths 2 x 6‚" SS flue lengths 10‚"ceiling ring galvanised 2 x 6‚"black painted SS flue lengths SS half shield
SWH-6136	Anti-down draught hat SS 2 x 10‚"galvanised flue lengths 2 x 8‚"galvanised flue lengths 4 x 6‚"SS flue lengths 10‚"ceiling ring galvanised 2 x 8‚"black painted SS mesh flue length

Standard Flashing	Suits
DFE108B	Metal roof 170-355mm external flue
DNL108B	Tile roof 175-300mm external flue
