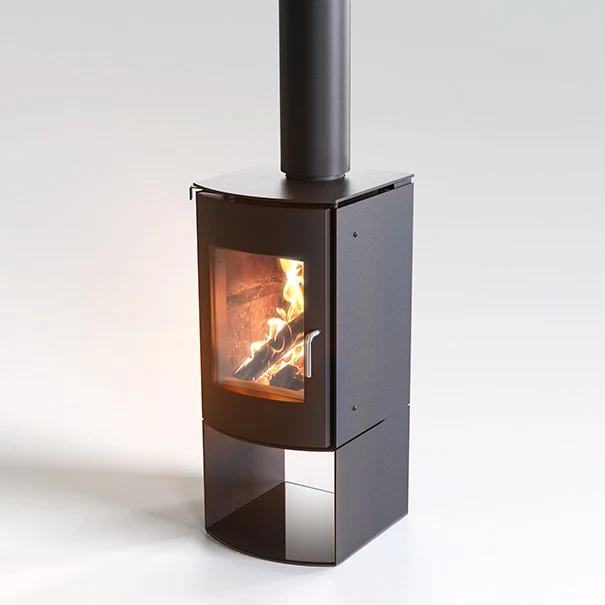

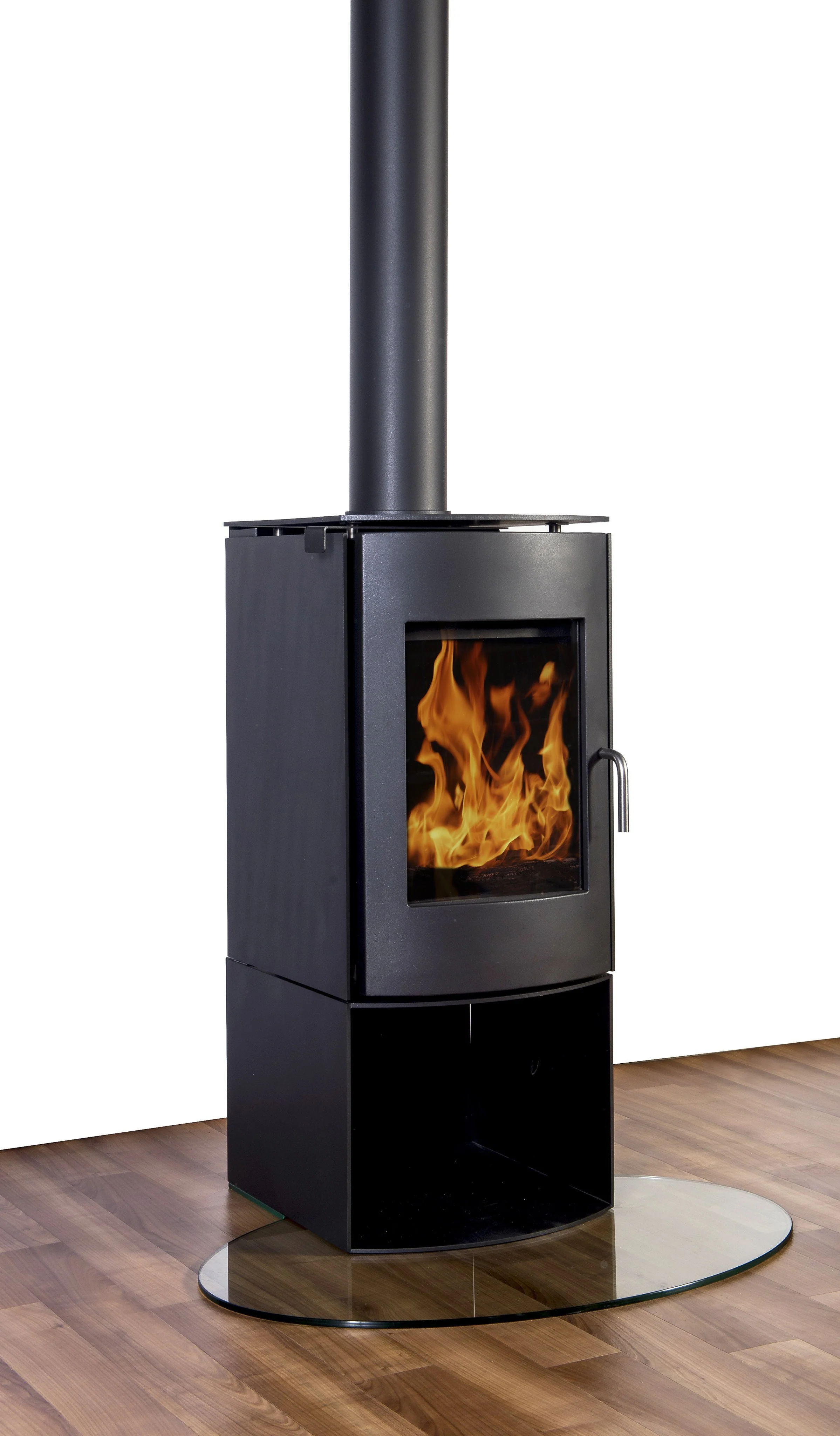

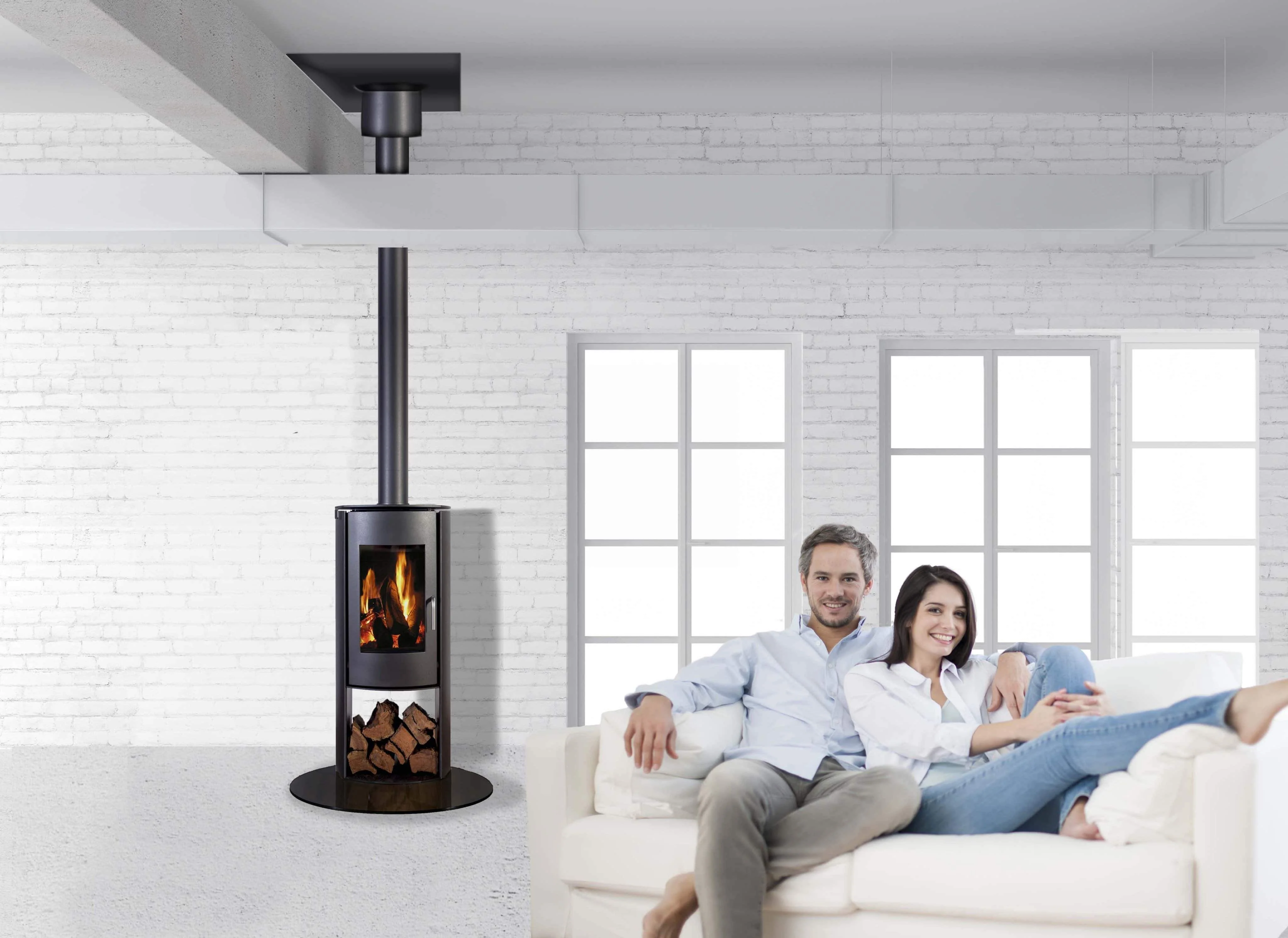

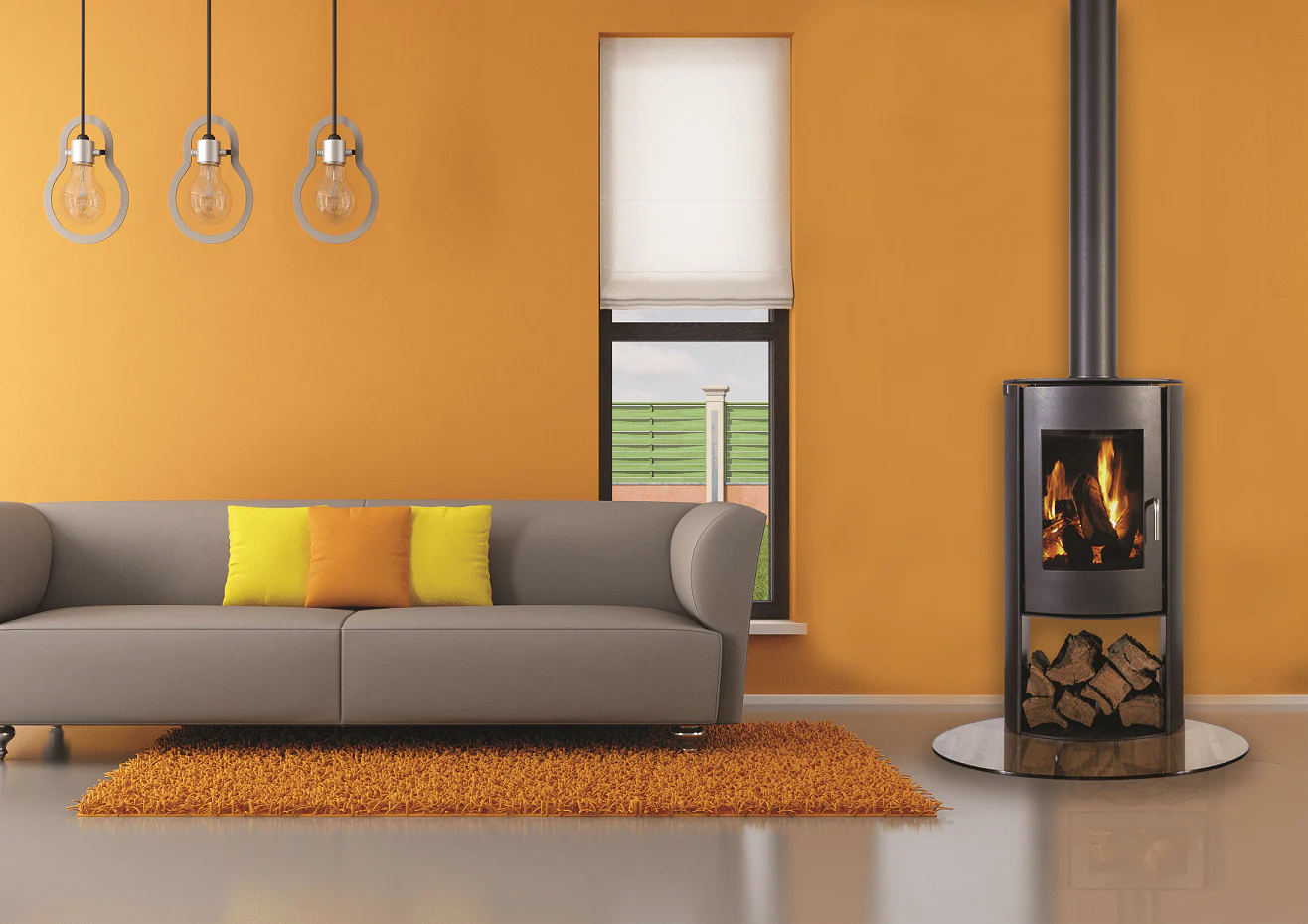

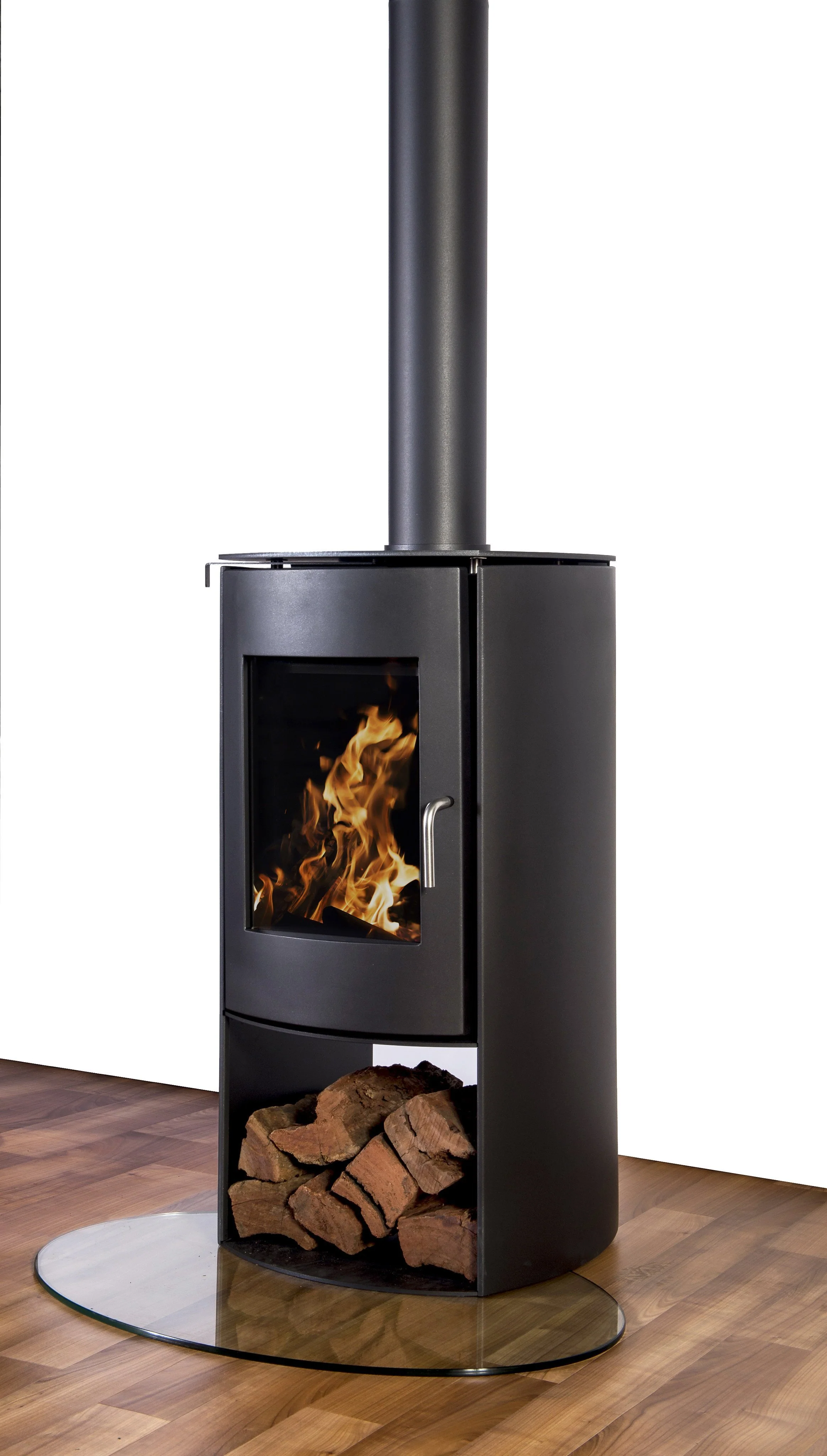

Nectre N60 Wood Fire
The Nectre N60 is easily a crowd favourite with its tall, sleek, award winning design. With the choice of curved sides or naked black sides, it will complement any home’s interior design.
- Black metallic paint finish
- Steel door with ceramic glass
- Highly efficient of up to 84%
- Choice of three exterior coverings
Specifications
| Heat Output | 11kW |
| Approximate Heating Area | Up to 170m2 |
| Efficiency | 73% |
| Emissions | 0.60g |
| Maximum log width | 300mm |
| Weight | 190kg |
Dimensions
Naked Sides: 454mm (W) x 1037mm (H) x 506mm (D)
Curved Sides: 581mm (W) x 1037mm (H) x 508mm (D)
Heater Clearances
Rear to Wall - 100mm (square to walls)
Side to Wall - Naked - 450mm (square to walls)
Side to Wall - Curved - 190mm (square to walls)
Rear Corner to Wall - Naked - 500mm (corner installation)
Rear Corner to Wall - Curved - 125mm (corner installation)
Compliance
The Nectre N60 has been designed and manufactured to exceed the strict AS/NZS 4013 standards for emissions of 1.5g / kg of fuel burnt and efficiency of 60%.
Manuals
Nectre N60 Installation Instructions.pdf
Nectre N60 Operating Instructions.pdf
Flue Options
To complete any wood heater installation a flue kit and flashing will be required. These are available for purchase as standard kits online which will suit straightforward vertical single-story applications. Depending on your site specifics you may also need a hearth or other components that aren't available on our website.
We have heater experts available in store to give advice for wood heater installations so if you have any questions call 1300 300 227 or drop into your local outlet.
|
Standard Flue Kit |
Includes |
|
SWH-6101 |
· Anti-down draught hat SS · 2 x 10"galvanised flue lengths · 2 x 8"galvanised flue lengths · 2 x 6" SS flue lengths · 10"ceiling ring galvanised · 2 x 6"black painted SS flue lengths · SS half shield |
|
SWH-6136 |
· Anti-down draught hat SS · 2 x 10"galvanised flue lengths · 2 x 8"galvanised flue lengths · 4 x 6"SSflue lengths · 10"ceiling ring galvanised · 2 x 8"black painted SS mesh flue length |
|
Standard Flashing |
Suits |
|
DFE108B |
Metal roof 170-355mm external flue |
|
DNL108B |
Tile roof 175-300mm external flue |
